TIKI TP365 DRB - Total weight 3500kg

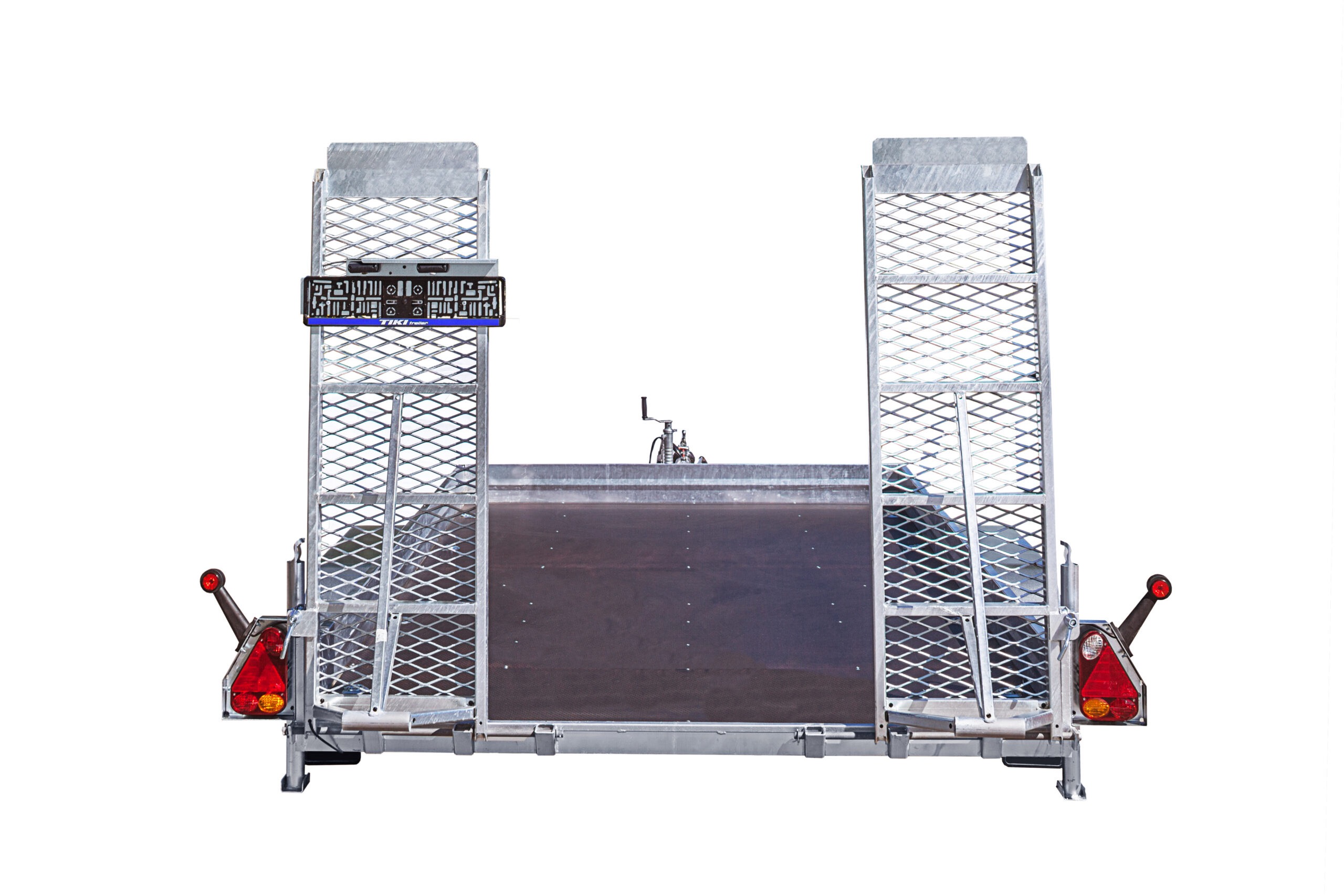

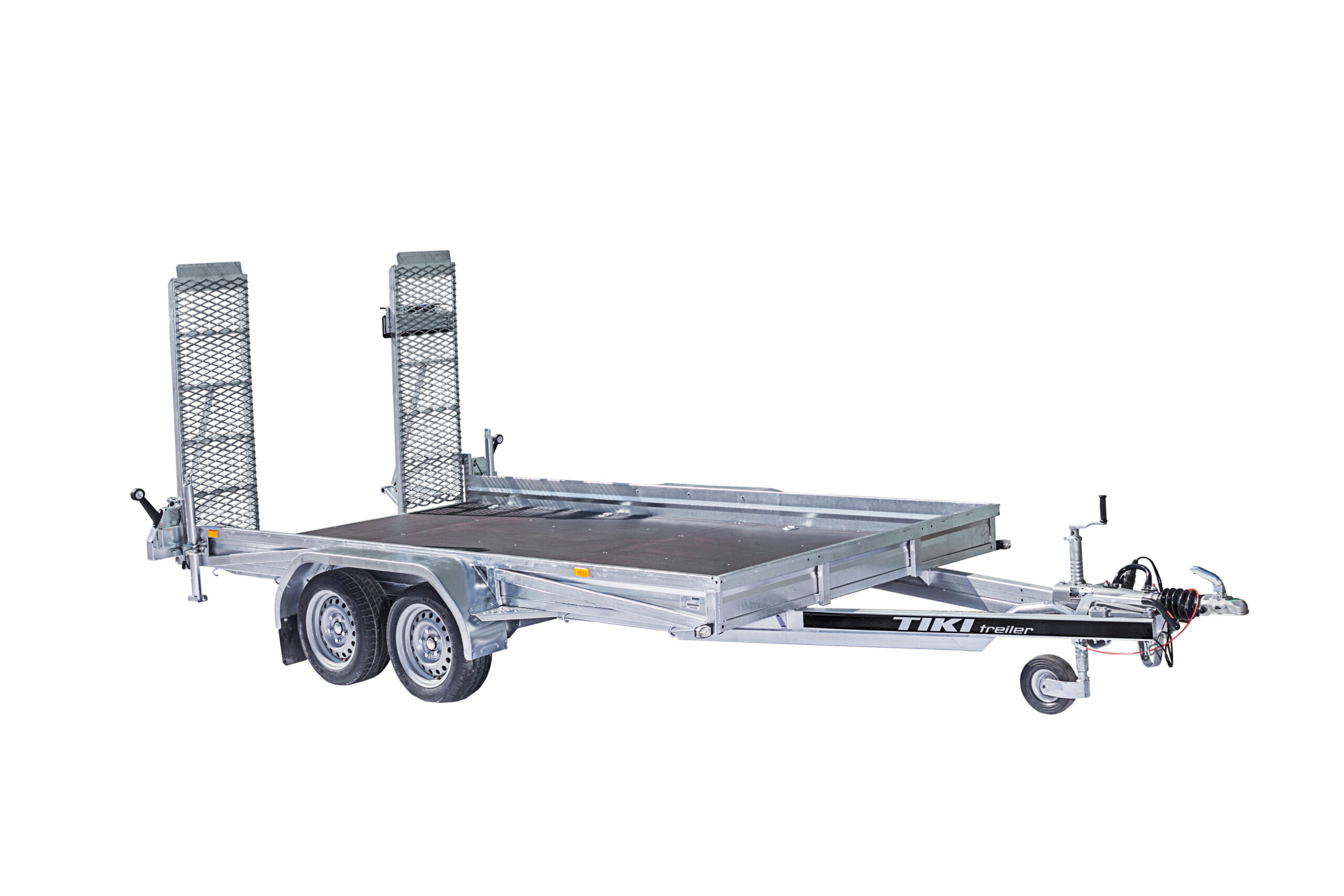

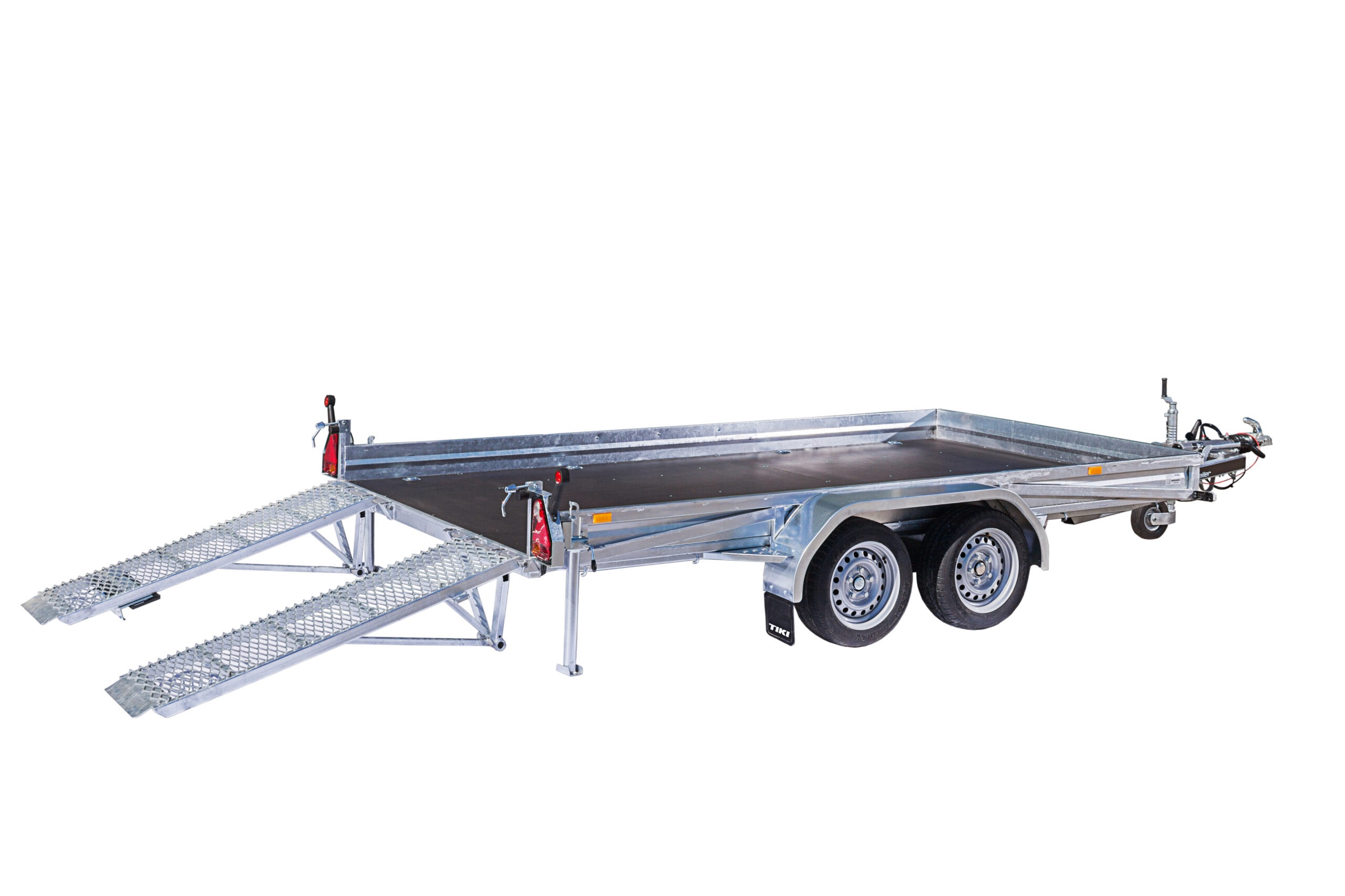

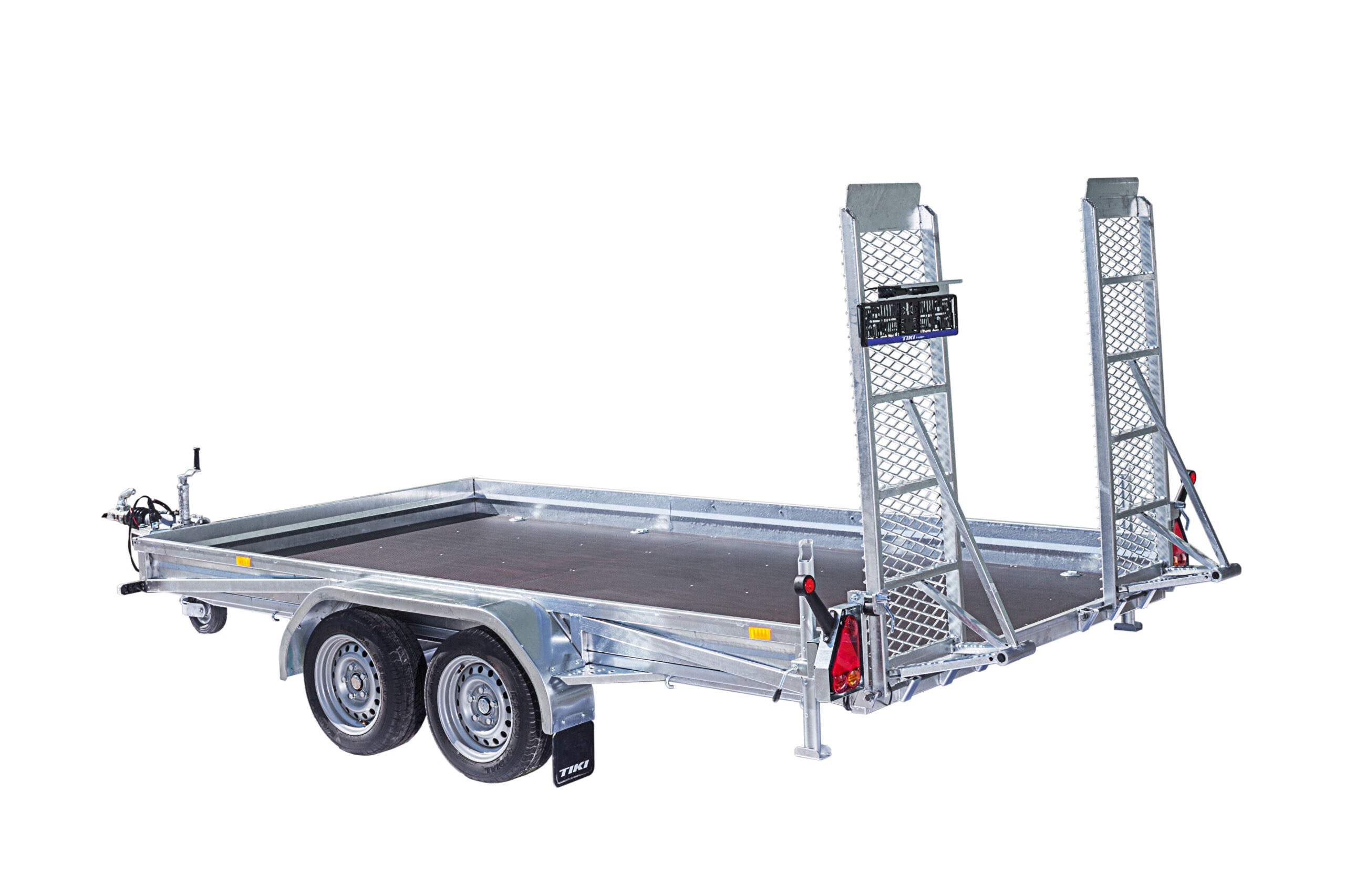

Tiki TP365-DRB - Heavy Duty Dual Ramp Machine Trailer

The TikiTP365-DRB is a large, stable and rugged machine trailer that is ideal for transporting excavators or skid steer loaders. With its double ramps, this trailer makes loading and unloading both easy and safe. Extra heavy-duty support wheels and double rear outriggers ensure stability during loading. With many attachment points both on and around the trailer, it offers both flexibility and security during transportation. This trailer is built to handle the toughest jobs, with a construction that ensures durability and reliability. The Tiki TP365-DRB is built from hot-dip galvanized steel with extra high corrosion resistance and features an adjustable 250kg solid rubber support wheel with bracket, 13-pin connector and M+S tyres.

Standard equipment:

✅ Hot-dip galvanized and passivated components (extra high corrosion resistance)

✅ Fully welded frame chassis

✅ Reinforced support wheel 250kg, in solid rubber

✅ Laminated waterproof plywood floor

✅ Adjustable rear support legs

✅ Metal folding screens

✅ Reinforced sidesteps

✅ Reinforced drive-up ramp

✅ Width-adjustable rear ramps

✅ Protection for rear lighting

✅ 4+4 tie-down loops (on the outside)

✅ 3+3 loops, breaking strength 1000kg

✅ 13-pin connector

The Tiki TP365-DRB is the perfect solution for machine owners who need a reliable and efficient transportation solution for their machines.

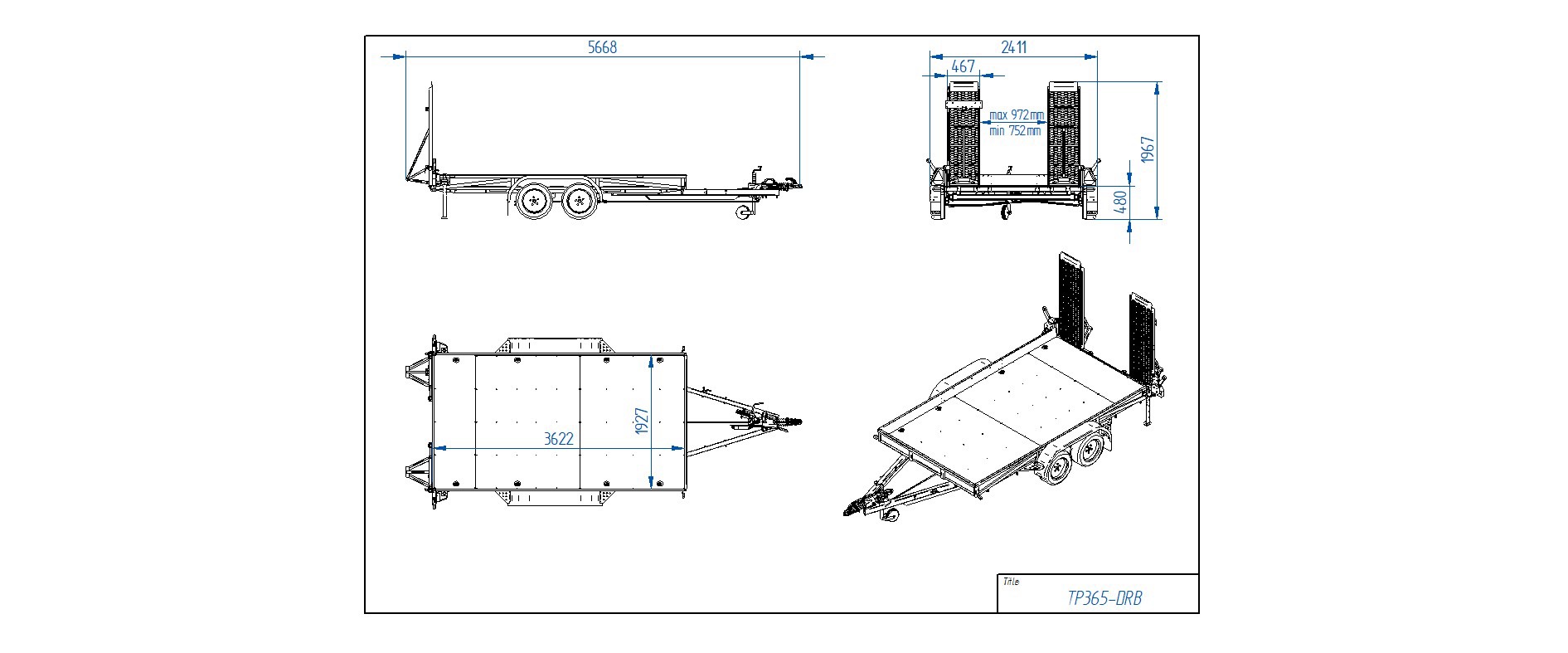

Specification Tiki TP365-DRB

Total weight: 3500kg
Dead weight: 682kg
Max load: 2818kg
Length: 567cm
Width: 241cm
Inside length: 362cm
Inside width: 193cm
Frame height: 16cm
Frame: Welded frame
Brakes: Yes
Axle type: 2 x rubber torsion
Tires: 195/50 R13C 5 x 112 M+S
